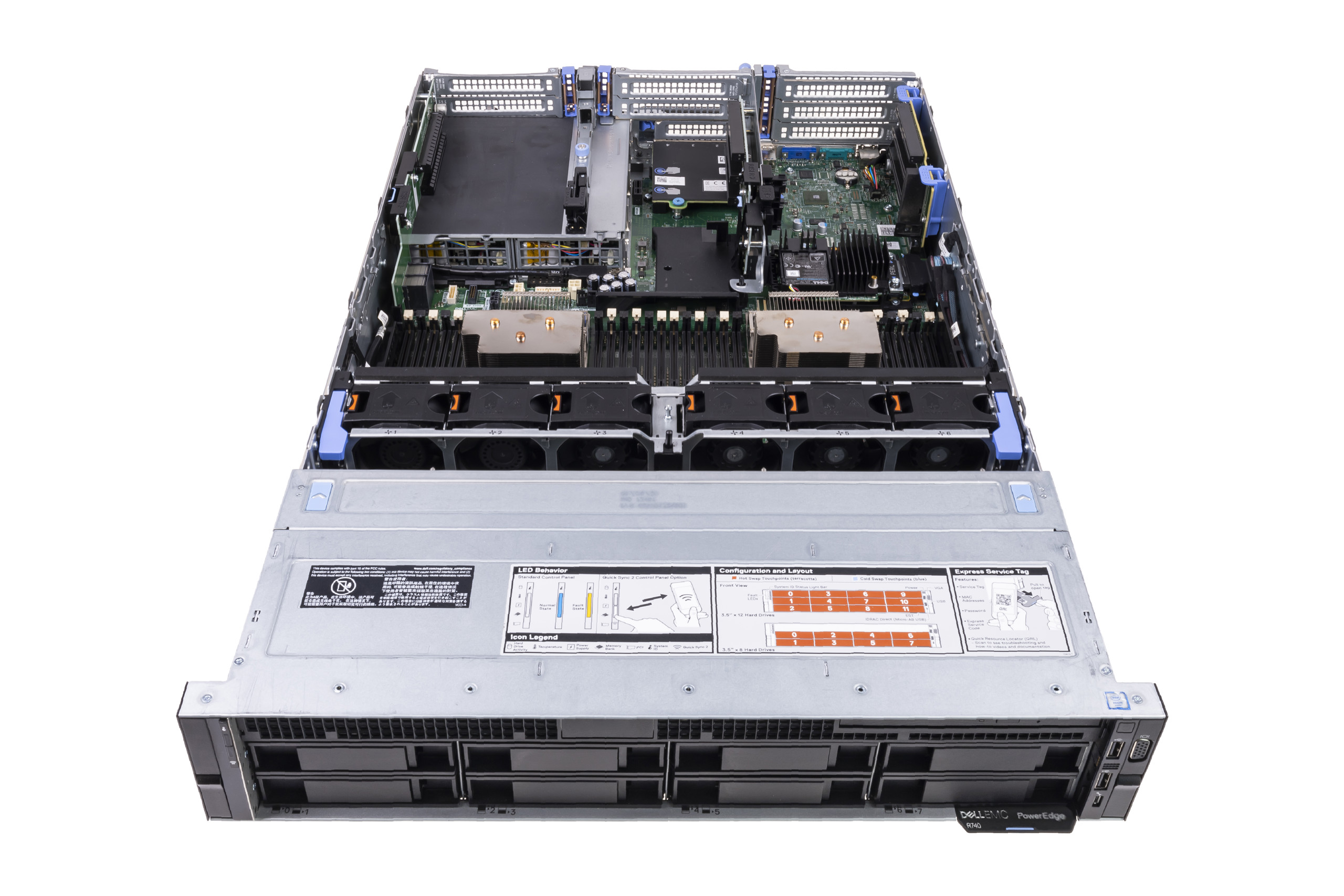

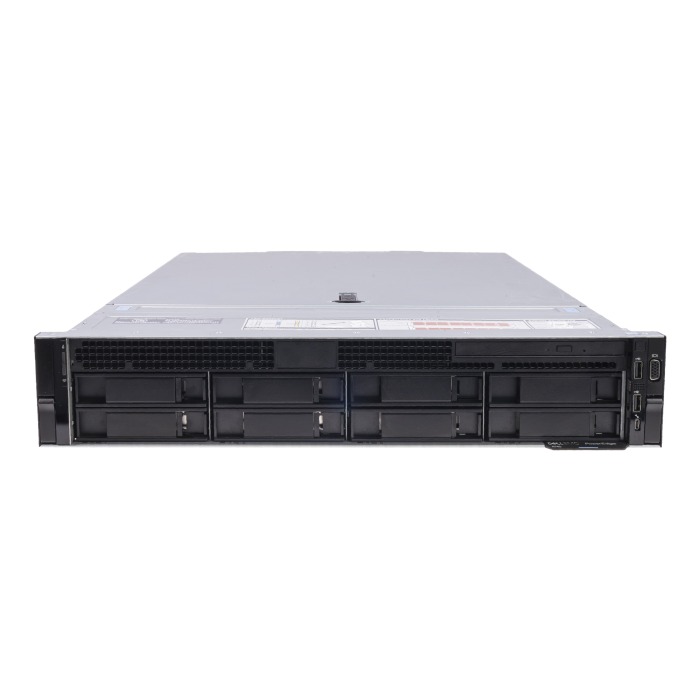

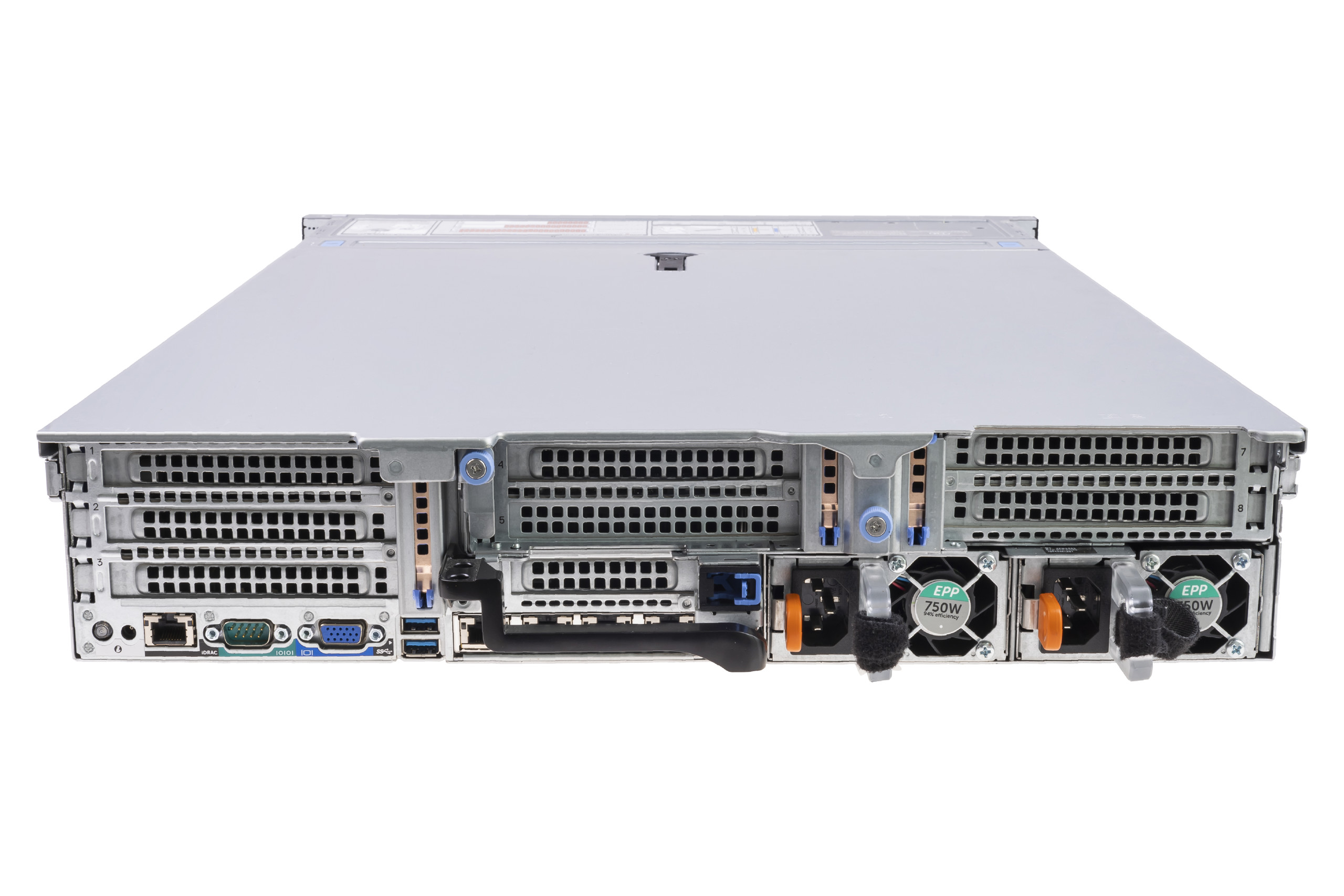

Server Dell PowerEdge R740 8x3.5" with 2x Gold 6134, 192GB RAM, BOSS-S1 with 2x Dell 240GB SSD SATA RI M.2, HBA330, 4x 800GB SSD SAS 12G MU 2.5", 2x10GbE SFP+ + 2x1GbE RJ45, 2x PSU 1600W, rails, bezel, iDRAC9 Enterprise

Technical information about the R740 server model line.

• Server height: 2U
• Server depth: 71cm
• Server weight: 41kg
• Chassis types: 16x2.5", 8x3.5"
• Number of processors: maximum 2 x CPU 2nd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
• Maximum number of processor cores:: 2x 22-core / 44-thread CPU total 44-core / 88-thread
• Number of RAM banks: 24 DDR4
• Maximum RAM size: 24x128GB DDR4 RDIMM total 3TB
• Number of drive bays: 16x2.5", 8x3.5"
• Motherboard chipset: Intel C610
• Number of USB ports: 5 (2x front, 2x back, 1x inside)
• Number of PCI-E slots: up to 8x PCIe Gen 3
• Maximum number of power supplies:: 2
• Supported power supplies: 495W, 750W, 1100W or 1600W
• Remote management: iDRAC 9
• Supported internal RAID controllers: H330, PERC H730P, PERC H740P, HBA330, S140 and BOSS cards

Optional accessories for the R740 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Along with the server, it is possible to purchase one of the following operating systems:

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• She server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

ATTENTION!

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
