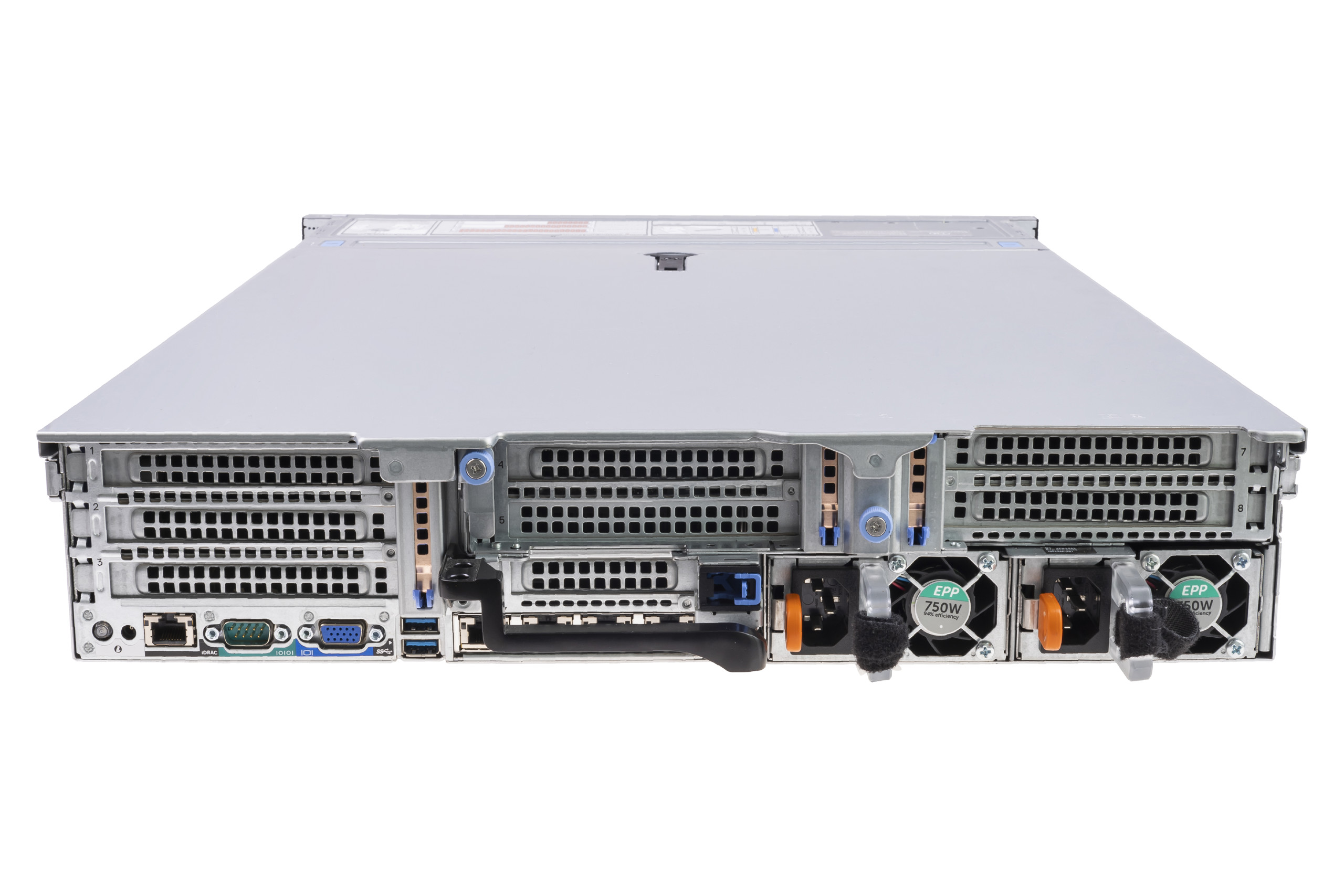

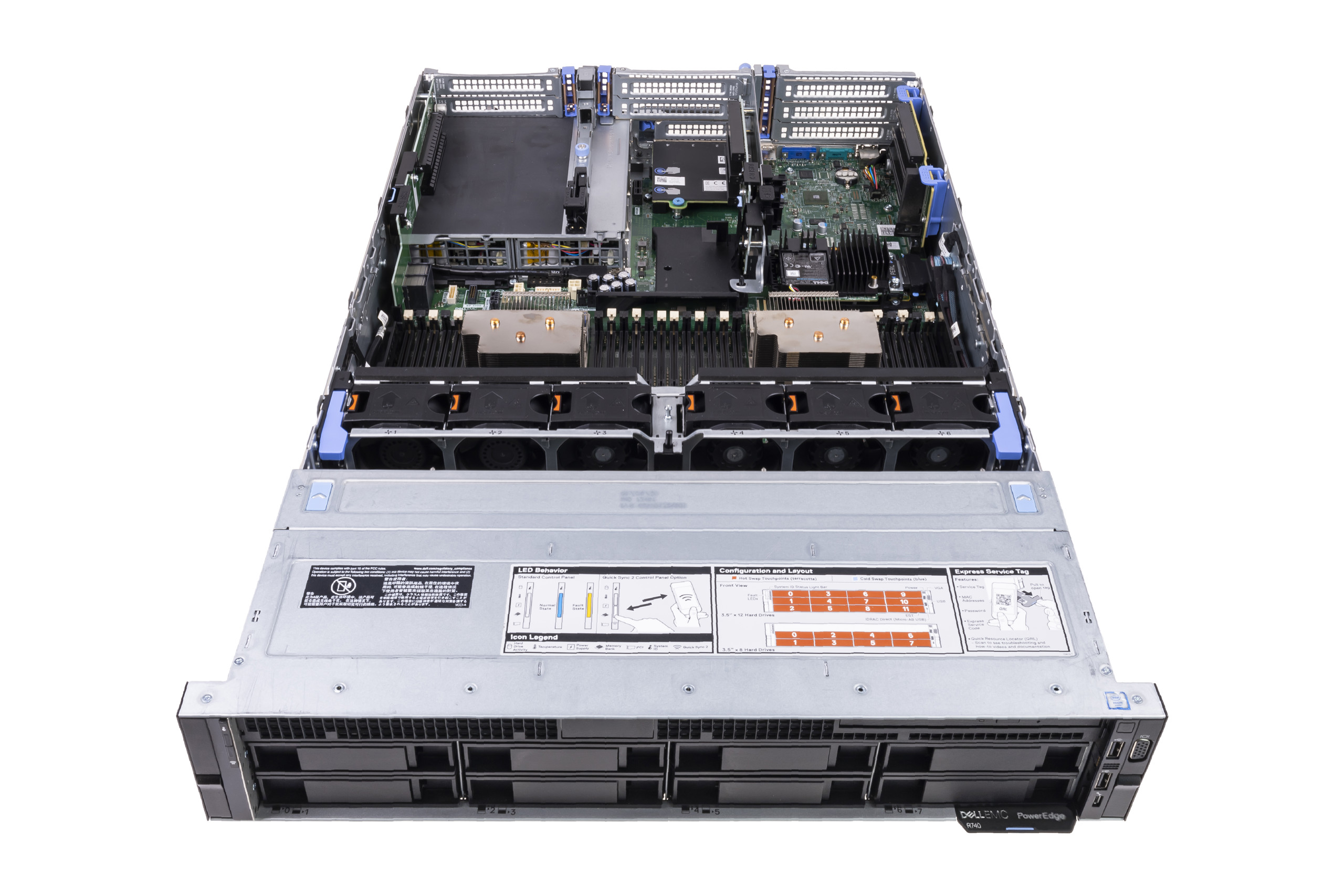

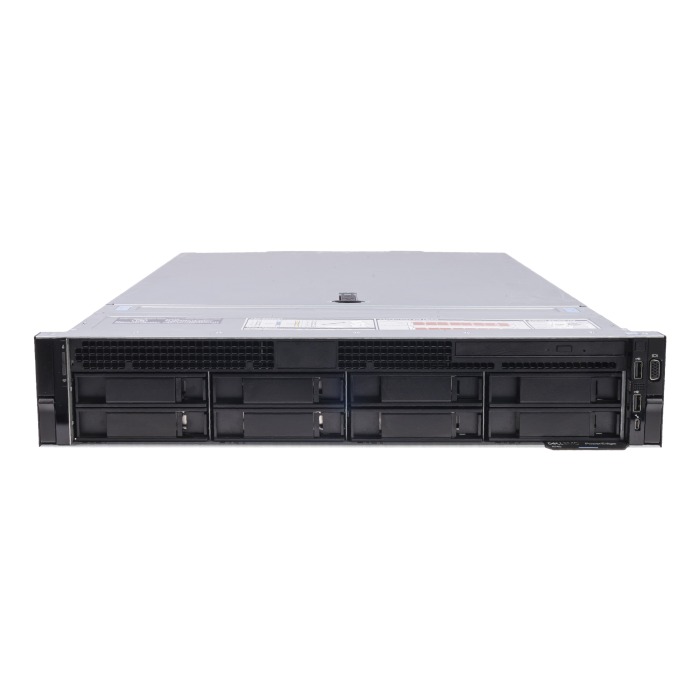

Server Dell PowerEdge R740 8x3.5" with 2x Gold 6134, 128GB RAM, H730p, 2x 6TB 7.2K SATA 6G 3.5", 4x 960GB SSD SATA 2.5", 2x10GbE SFP+, 2x PSU 1600W, rails, bezel, iDRAC9 Enterprise
Manufacturer: Dell
PN: R740-8x3.5-2x6134-128GB-H730-V03
Warranty: 36 months with the possibility of extension
This set contains:
- 1x Dell PowerEdge R740 8x3.5" server platform
- 2x Intel Xeon Gold 6134 8-core 3.2GHz 24.75MB 130W SR3AR processor
- 4x RAM 32GB 2666MHz DDR4 RDIMM
- 2x Hard drive 6TB 7.2K SATA 6G 3.5"
- 4x Hard drive 960GB SSD SATA 6G RI 2.5"
- 6x 3.5" drive tray
- 1x Dell PERC H730P 2GB Mini mono RAID controller
- 1x Dell Brocade BR1741M-K 2x10GbE SFP+ NDC Network interface card
- 1x Bezel Dell PowerEdge 2U
- 2x Dell PSU 1600W 100-240V AC 80+ Platinum
- 1x Dell B6 2U rails kit
- 1x SAS cable
- 1x iDRAC9 Enterprise
- 4x Dell adapter for 2.5" drive to 3.5" tray
Technical information about the R740 server model line.
- Server height: 2U
- Server depth: 71cm
- Server weight: 41kg
- Chassis types: 16x2.5", 8x3.5"
- Number of processors: maximum 2 x CPU 2nd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores:: 2x 22-core / 44-thread CPU total 44-core / 88-thread
- Number of RAM banks: 24 DDR4
- Maximum RAM size: 24x128GB DDR4 RDIMM total 3TB
- Number of drive bays: 16x2.5", 8x3.5"
- Motherboard chipset: Intel C610
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 8x PCIe Gen 3
- Maximum number of power supplies:: 2
- Supported power supplies: 495W, 750W, 1100W or 1600W
- Remote management: iDRAC 9
- Supported internal RAID controllers: H330, PERC H730P, PERC H740P, HBA330, S140 and BOSS cards
Optional accessories for the R740 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Along with the server, it is possible to purchase one of the following operating systems:
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- She server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | |
|---|---|
| Compatible with | PowerEdge R740 8x3.5" |
| Condition | Refurbished |
| Total power of installed PSUs | 3200 W |
| Single CPU PassMark score | 16511 |
| CPU Base Frequency | 3.2 GHz |
| Amount of CPUs installed | 2 |
| Total of CPU Threads | 32 |
| Turbo clock frequency | 3.7 GHz |
| TDP procesora | 130 W |
| Total PSUs installed | 2 |
| Weight | 25 kg |
| Chassis type | |
| Total of CPU Cores | |
| PSU efficiency class | |
| RAM Capacity |
