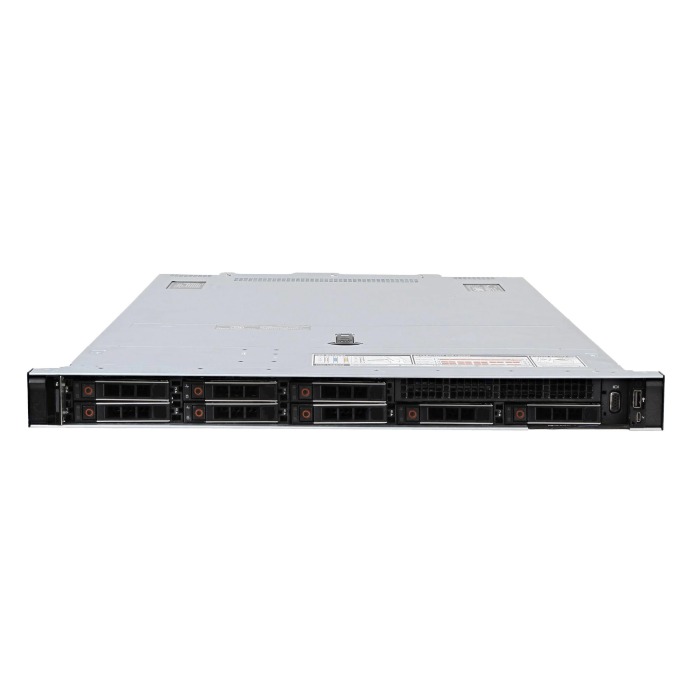

Server Dell PowerEdge R650 8x2.5" with 2x Gold 6338, 1024GB RAM, H755, 2x 480GB SSD SATA 2.5", 4x1GbE, 4x10GbE SFP+, 2x PSU 1400W, rails, iDRAC9 Enterprise
Manufacturer: Dell
PN: R650-8x2.5-2x6338-1024GB-H755-V01
Loading...
Calculating delivery time...In stock: 2
Warranty: 36 months with the possibility of extension
This set contains:
- 1x Dell PowerEdge R650 8x2.5" server platform
- 2x Intel Xeon Gold 6338 32-core 64-threads 2GHz 48MB 205W SRKJ9 Processor
- 16x RAM 64GB DDR4 RDIMM 2666MHz
- 2x Hard drive 480GB SSD SATA 6G RI 2.5"
- 2x 2.5" drive tray
- 1x Dell H755 RAID Controller Front PERC
- 1x Broadcom 5720 4x1GbE RJ45 OCP 3.0 Network interface card
- 1x Intel X710-DA4 4x10GbE SFP+ PCIe 3.0x8 Network interface card
- 1x Qlogic QLE2692 2x16Gb FC PCIe 3.0x8 Network interface card
- 2x 1400W PSU 100-240V AC 80+ Platinum
- 1x Static rails A14 1U
- 1x Dell PowerEdge R650 8x2.5" Front PERC SAS cable
- 4x 10GbE SFP+ LC-LC 850nm MM 150m Optical transceiver
- 1x iDRAC9 Enterprise
Technical information about the R650 server model line.
- Server height: 1U
- Server depth: 78,7cm
- Server weight: 21.2kg
- Chassis types: 10x2.5", 8x2.5", 4x3.5"
- Number of processors: maximum 2x 3rd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 40-core / 80-thread CPU total 80-core / 160-thread
- Number of RAM banks: 32 DDR4
- Maximum RAM size: 32x64GB DDR4 RDIMM, total 2TB/32x256GB DDR4 LRDIMM, total 8TB
- Number of drive bays: 10x2.5", 8x2.5", 4x3.5"
- Motherboard chipset: Intel C620
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 3x PCIe Gen 4 ( 3xPCIe, 1xOCP)
- Maximum number of power supplies: 2
- Supported power supplies: 800W, 1100W or 1400W
- Remote management: iDRAC 9
- Supported internal RAID controllers: HBA355i, HBA355E, H345, H355, H745, H755, H755N, H840 and S150
Optional accessories for the R650 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!

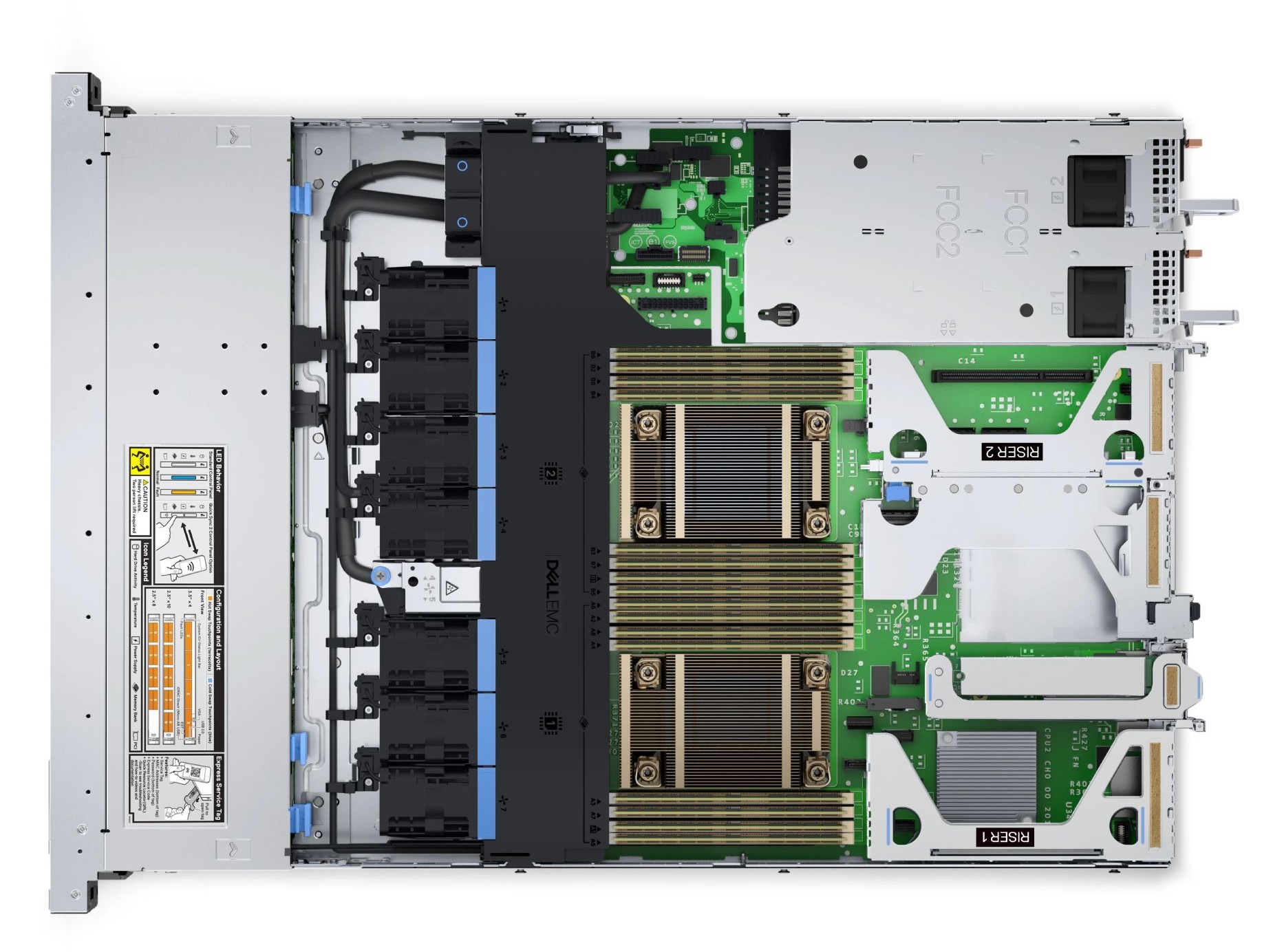

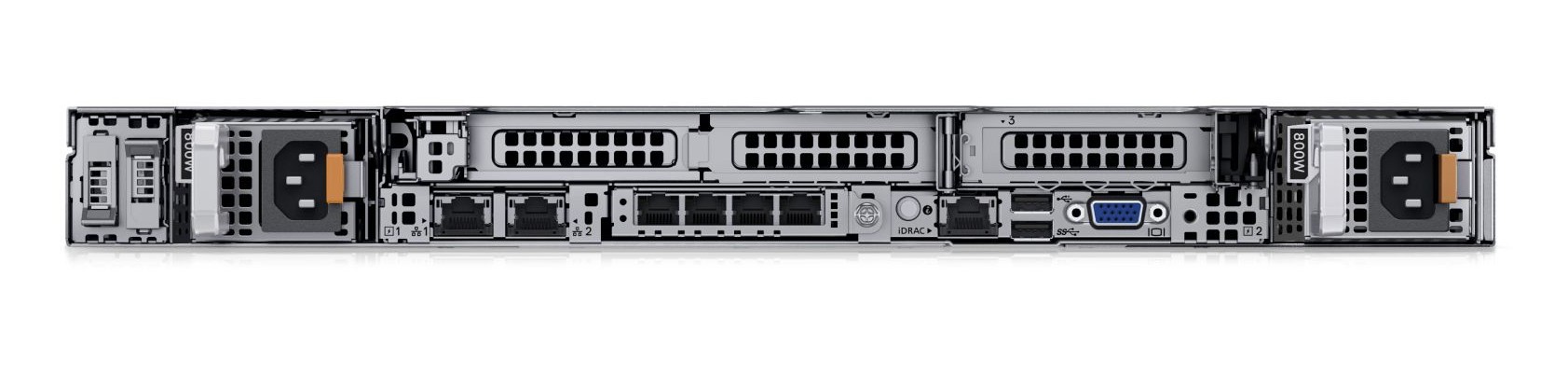

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | |
|---|---|
| Compatible with | PowerEdge R650 8x2.5" |
| Condition | Refurbished |
| Number of 1GbE RJ45 ports | 4 |
| Amount of 10GbE SFP+ ports | 4 |
| Amount of 16Gb FC ports | 2 |
| Total power of installed PSUs | 2800 W |
| CPU Base Frequency | 2 GHz |
| Amount of CPUs installed | 2 |
| Total of CPU Threads | 128 |
| Turbo clock frequency | 3.2 GHz |
| TDP procesora | 205 W |
| Total PSUs installed | 2 |
| Weight | 25 kg |
| Chassis type | |
| Total of CPU Cores | |
| Maksymalna ilość procesorów | |
| PSU efficiency class | |
| RAM Capacity |
