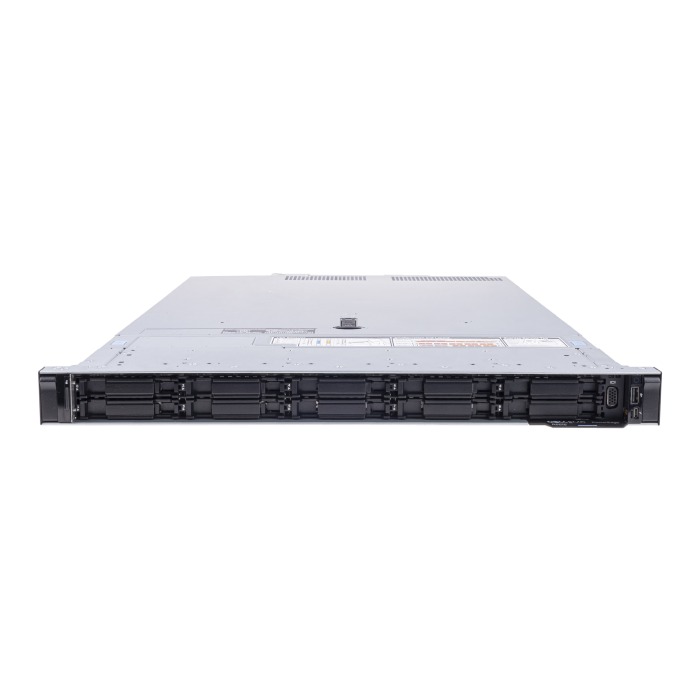

Server Dell PowerEdge R6515 10x2.5" (8xNVMe) with 1x EPYC 7343, 384GB RAM, H740P, BOSS-S1 with 2x Dell 240GB SSD SATA RI M.2), 4x Dell 3.84TB SSD NVMe U.2 2.5", 2x10/25GbE, TPM 2.0, 2x PSU 550W, rails, bezel, iDRAC9 Enterprise
Manufacturer: Dell
PN: R6515-10x2.5-8xNVMe-1xEPYC7343-384GB-H740P-V01
Warranty: 36 months with the possibility of extension
This set contains:
- 1x Dell PowerEdge R6515 10x2.5" server platform
- 1x AMD EPYC 7343 processor 16-core 3.2GHz 128MB 190W
- 6x RAM 64GB 3200MHz DDR4 RDIMM
- 2x Dell 240GB SSD SATA 6G M.2 2280 RI
- 4x 3.84TB SSD PCIe NVMe x4 2.5" Dell Hard drive
- 4x 2.5" drive tray
- 1x Dell Perc H740P 8GB Mini mono RAID controller
- 1x BOSS-S1 card
- 1x Bezel
- 2x Dell 550W AC 80+ Platinum 100-240V 50/60MHz power supply
- 1x Rail kit
- 1x Dell PowerEdge R6415/R6515 10x2.5" SAS cable
- 1x NVMe cable
- 1x Dell cryptographic module TPM 2.0 G15
- 1x iDRAC9 Enterprise
Technical information about the R6515 server model line.
- Server height: 1U
- Server depth: 74cm
- Server weight: 22kg
- Chassis types: 10x2.5", 8x2.5", 4x3.5"
- Number of processors: maximum 1x CPU 2nd or 3nd AMD EPYC processor
- Maximum number of CPU cores: 1x 64-core / 128-thread CPU
- Number of RAM banks: 16 DDR4
- Maximum RAM size: 16x128GB DDR4 RDIMM total 2TB
- Number of drive bays: 10x2.5", 8x2.5", 4x3.5"
- Motherboard chipset: Intel C610
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 2x PCIe ( 1xPCIe Gen3, 1xPCIe Gen3 + 1xOCP)
- Maximum number of power supplies: 2
- Supported power supplies: 550W
- Remote management: iDRAC 9
- Supported internal RAID controllers: HBA330, H330, H730P, H740P, H840 and S150
Optional accessories for the R6515 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
Attention!

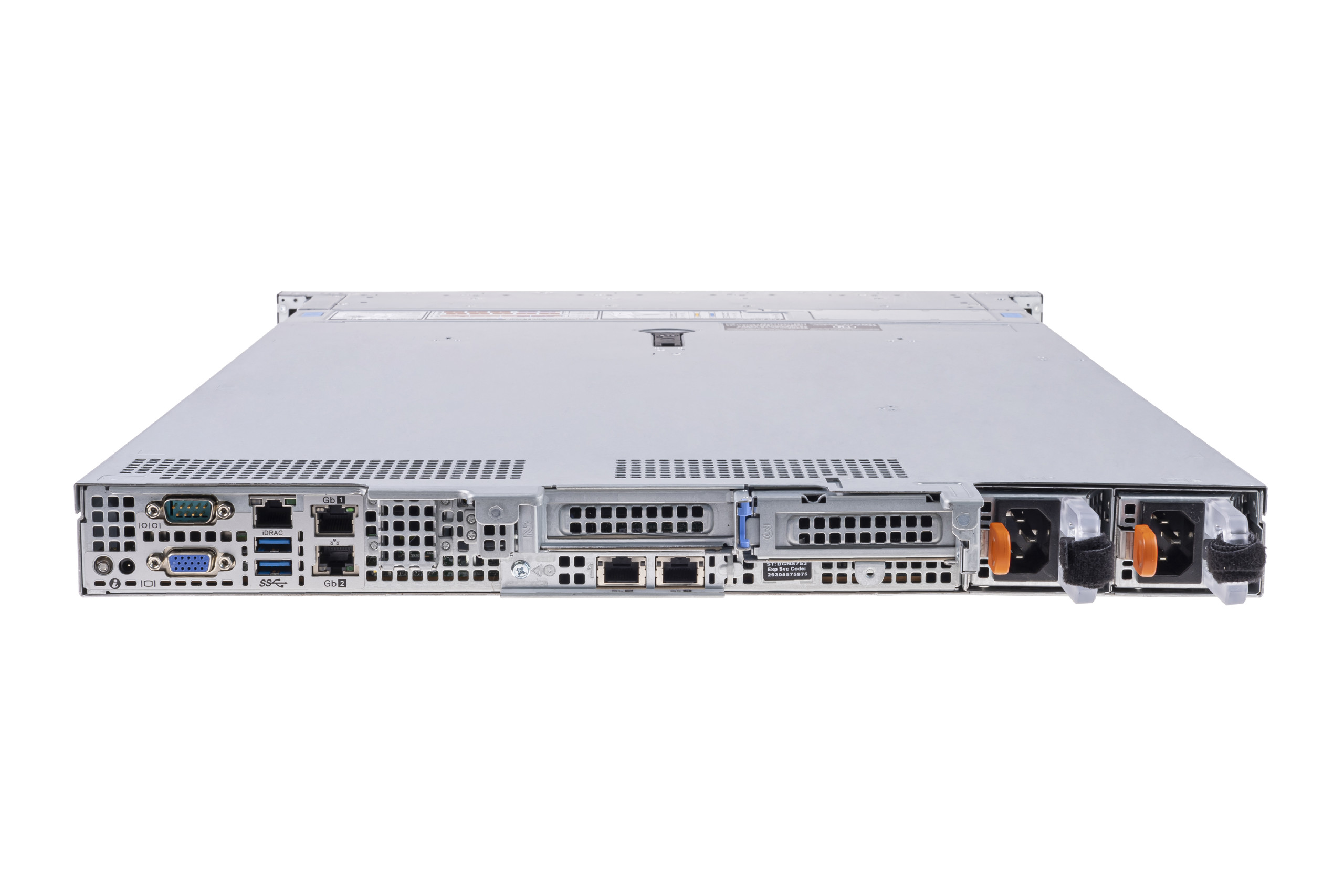

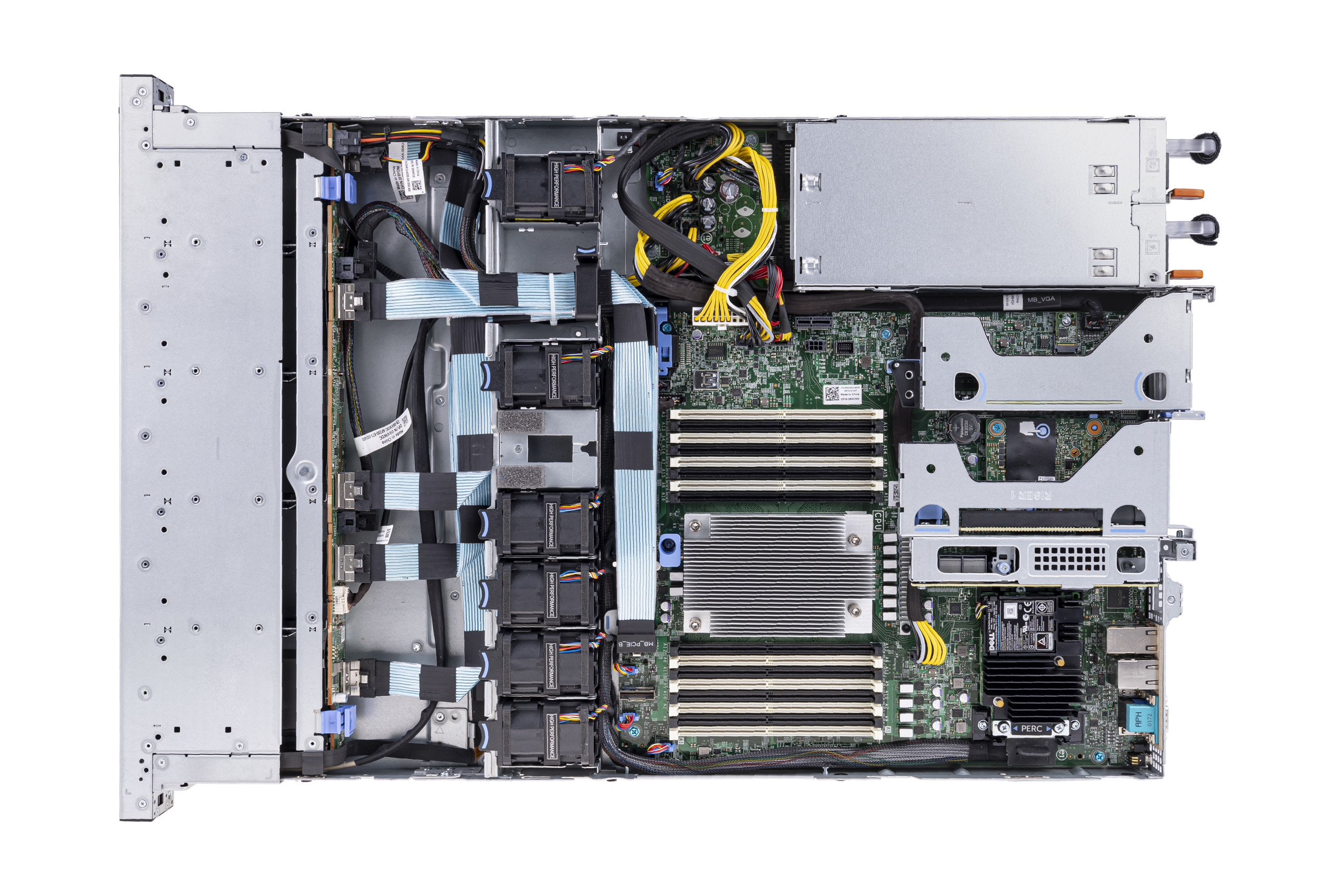

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | |
|---|---|
| Compatible with | PowerEdge R6515 10x2.5" (8xNVMe) |
| Condition | Refurbished |
| Number of 10/25GbE SFP28 ports | 2 |
| Total power of installed PSUs | 1100 W |
| CPU Base Frequency | 3.2 GHz |
| Number of CPUs installed | 1 |
| Total of CPU Threads | 32 |
| Turbo clock frequency | 3.9 GHz |
| Processor TDP | 190 W |
| Total PSUs installed | 2 |
| Single PSU power | 550 W |
| Chassis type | |
| Total of CPU Cores | |
| PSU efficiency class | |
| RAM Capacity |
