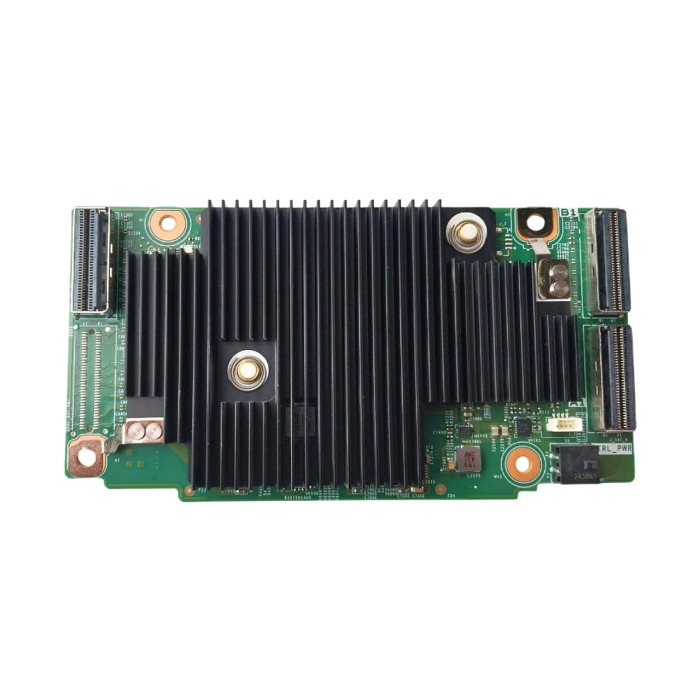

RAID controller PERC12 Broadcom SAS4016 Dell PowerEdge H365i front DC-MHS TV7D3
Manufacturer: Broadcom
PN: TV7D3
Model: SAS4116W
Loading...
Calculating delivery time...In stock: 1
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Front
- Supported RAID levels - RAID-10, RAID-1, RAID-0
- Support for JBOD mode - No
- Supported disk interfaces - 16Gb NVMe, 22.5Gb SAS, 12Gb SAS, 6Gb SAS, 6Gb SATA
- Maximum number of drives - 32
- Support for 4KN drives - Yes
- Host bus - PCIe 4.0x8
- Controller type - RAID controller
available for lease
Before placing your order, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers.
If you have any doubts, we are happy to advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | |
|---|---|
| Brand | |
| Compatible with | PowerEdge R470, PowerEdge R470 10x2.5", PowerEdge R470 16xE3.S, PowerEdge R470 4x3.5", PowerEdge R470 8x2.5", PowerEdge R470 8xE3.S, PowerEdge R570, PowerEdge R570 12x3.5", PowerEdge R570 16x2.5", PowerEdge R570 16xE3.S, PowerEdge R570 24x2.5", PowerEdge R570 32xE3.S, PowerEdge R570 8x2.5", PowerEdge R570 8xE3.S, PowerEdge R6725, PowerEdge R6725 10x2.5", PowerEdge R6725 16xE3.S, PowerEdge R6725 20xE3.S, PowerEdge R6725 4x3.5", PowerEdge R6725 8x2.5", PowerEdge R6725 8xE3.S, PowerEdge R770, PowerEdge R770 16x2.5", PowerEdge R770 16xE3.S, PowerEdge R770 24x2.5", PowerEdge R770 32xE3.S, PowerEdge R770 40 x E3.S, PowerEdge R770 8x2.5", PowerEdge R770 8xE3.S, PowerEdge R7715, PowerEdge R7715 12x3.5", PowerEdge R7715 16x2.5", PowerEdge R7715 16xE3.S, PowerEdge R7715 24x2.5", PowerEdge R7715 2x2.5", PowerEdge R7715 32xE3.S, PowerEdge R7715 40xE3.S, PowerEdge R7715 8x2.5", PowerEdge R7715 8xE3.S |
| Condition | Refurbished |
| Maximum number of drives | 32 |
| Product type | RAID controller |
| Controller type | |
| Supported RAID levels | |
| Support for JBOD mode | |
| Supported disk interfaces | |
| Support for 4KN drives | |
| Host bus | |
| Card type |
